Rotary Clamp

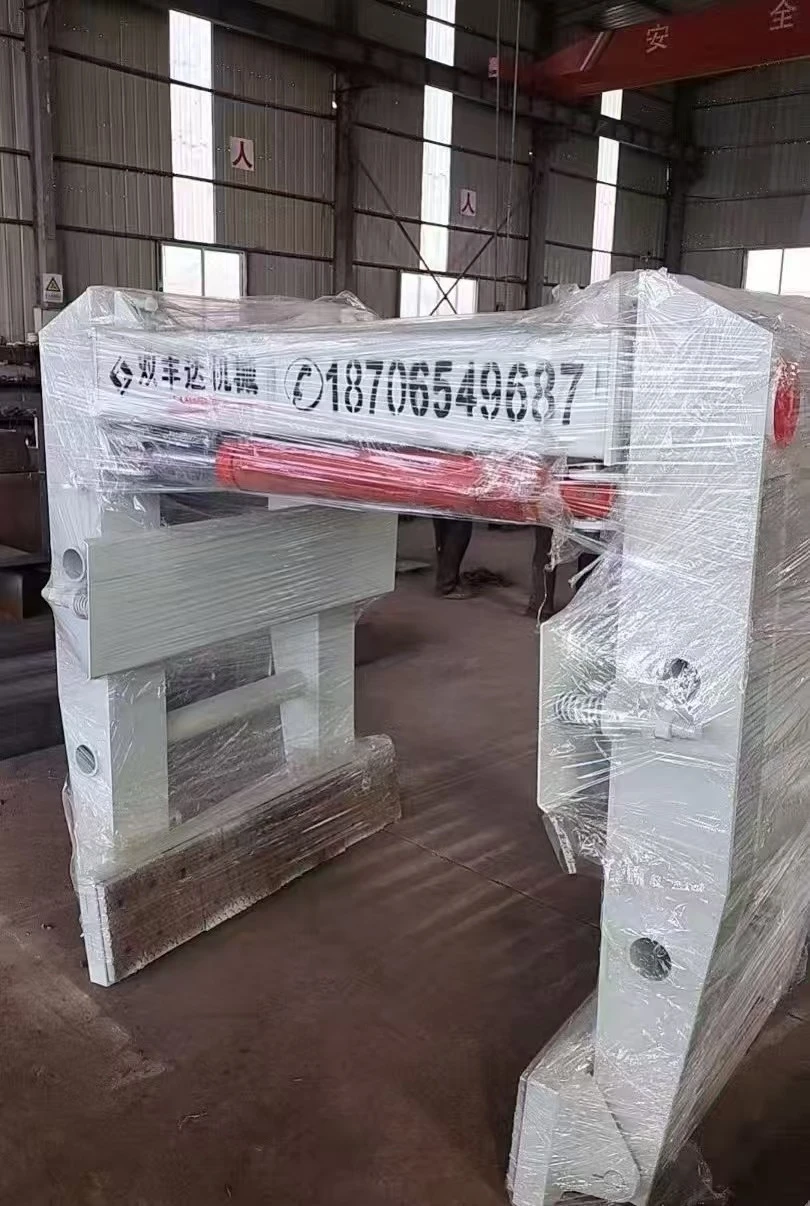

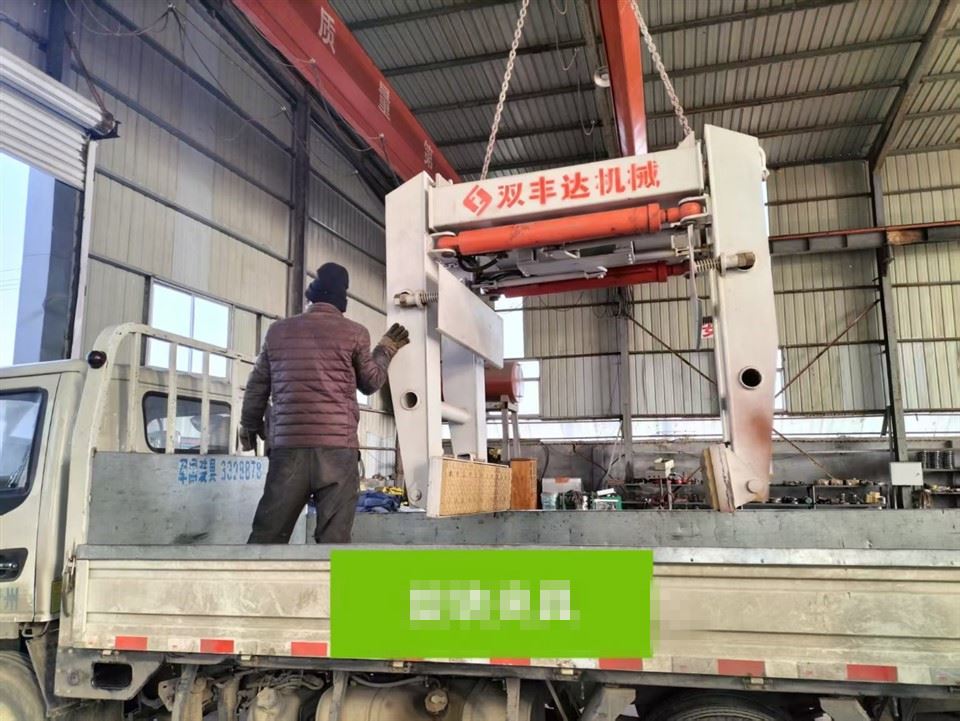

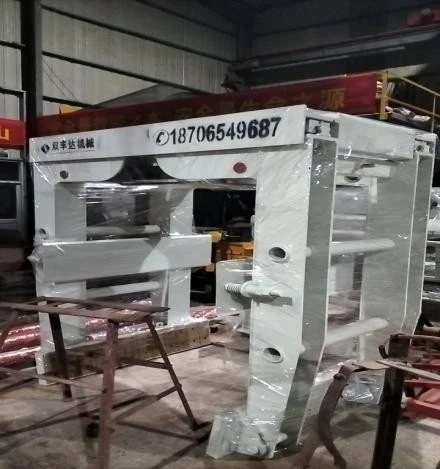

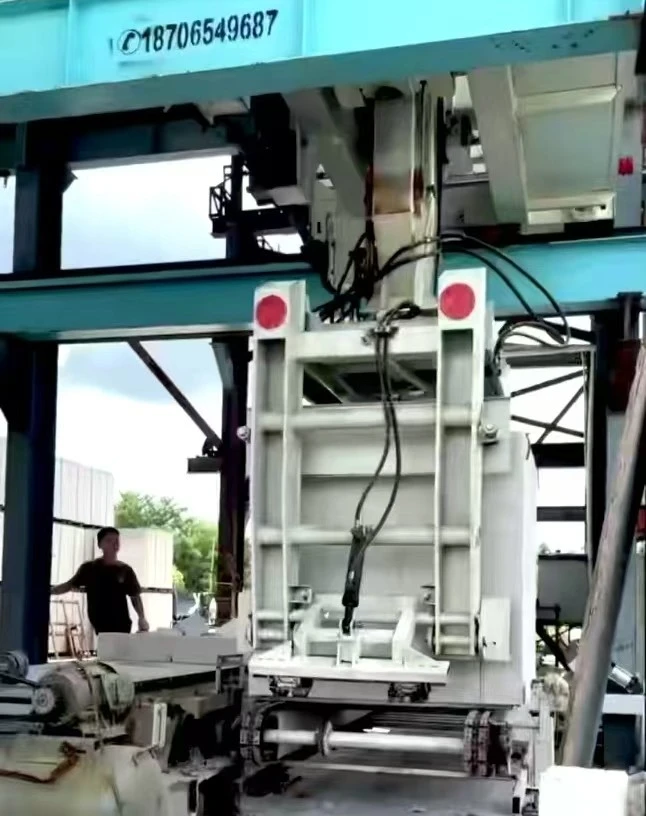

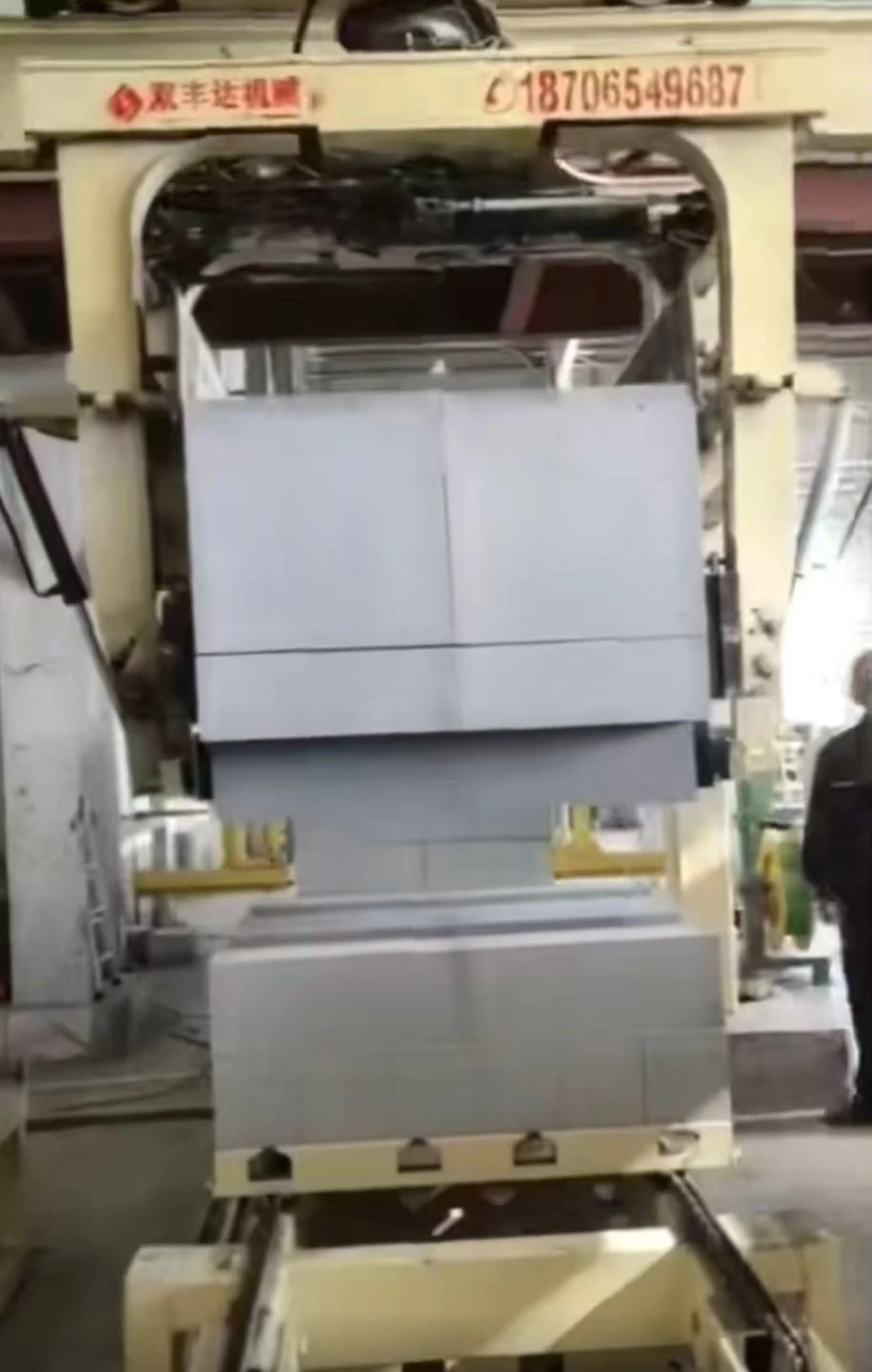

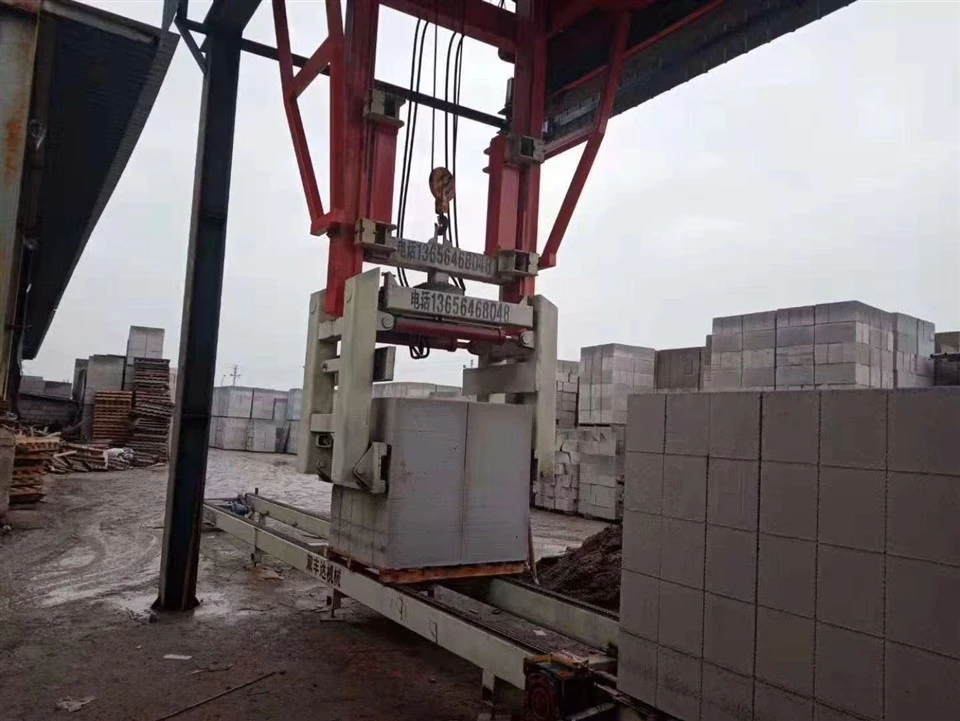

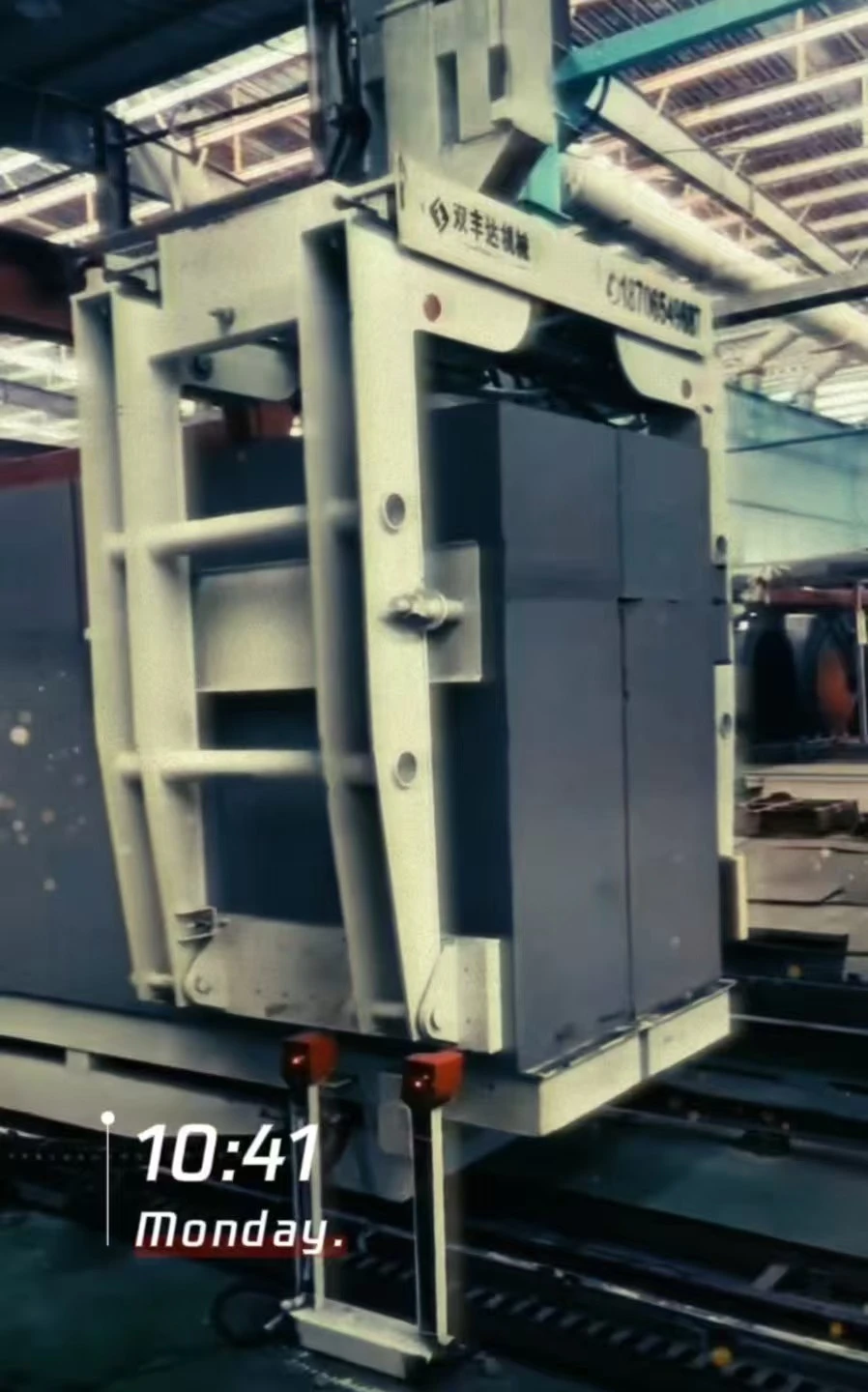

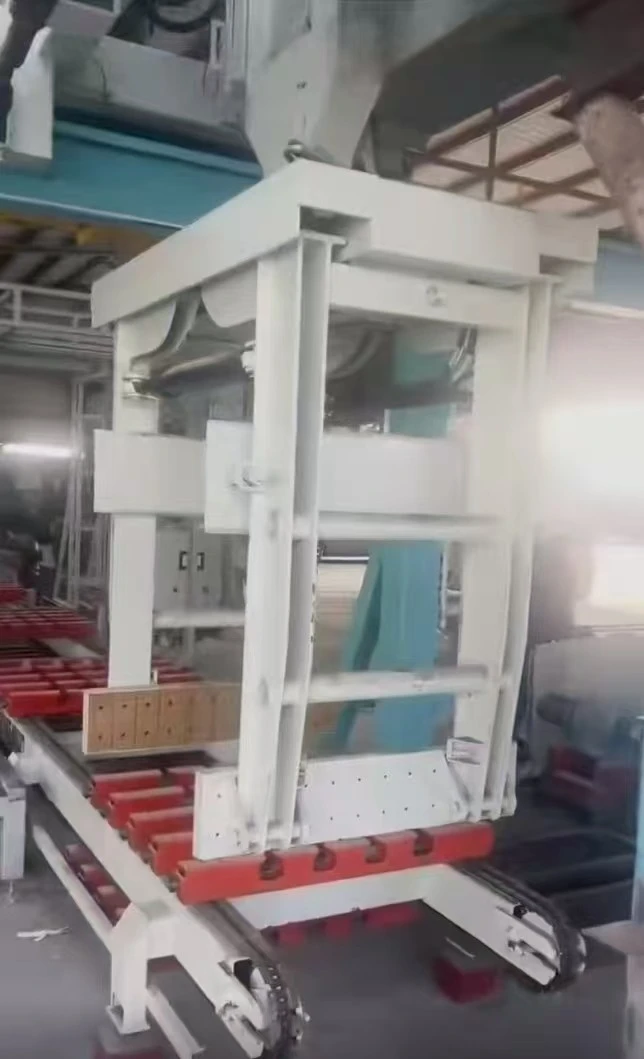

The rotating clamp for autoclaved aerated concrete blocks is a device used to safely and smoothly clamp and transport the autoclaved aerated concrete blocks to the packaging line or pallet.
Here is the relevant introduction:
-Structural composition: usually includes a transverse guide frame, a longitudinal guide frame, a crane, a lifting mechanism, a synchronization mechanism, and a clamping mechanism. The lifting mechanism consists of a sliding plate, connecting beam, lifting cylinder, etc., which can achieve the lifting and lowering of the fixture. The clamping mechanism consists of a crossbeam, a clamping arm, and an oil cylinder. The two sides of the crossbeam are connected to the clamping arm through a pin shaft, and the oil cylinder drives the clamping arm to open and close to clamp or release the block. The bottom of the clamping arm is generally equipped with anti slip rubber pads to prevent the block from slipping off.
-Working principle: By moving a crane on a specific track, the fixture is transported above the aerated concrete block. The lifting mechanism descends to bring the fixture closer to the block, and then the oil cylinder of the clamping mechanism moves to drive the clamping arm to clamp the block. Then the lifting mechanism rises to lift the block, and the crane lifts the block to the designated location. Finally, the clamping arm is released to complete the transportation of the block.
-Functional features: It can achieve efficient handling of 1.2 * 1.2m blocks, and can stack smaller blocks after rotation, achieving greater stability, stability, ease of transportation, and precise positioning. Some fixtures use linkage mechanisms to ensure balanced stress during operation, avoid block damage, reduce internal stress in fixtures, and extend service life. Some also have synchronization function, and the lifting cylinder may adopt a floating connection, which is convenient for disassembly and saves costs.
Main technical parameters
1. Model size: 1200 * 1200 * 1200
2. Mass: 5500 kilograms
3. Power: 14Kw
4. Operating speed: 10-45m/min, variable frequency adjustable
Single mode fixture
The single mode clamp for autoclaved aerated concrete blocks is a device used to safely and smoothly clamp and transport the autoclaved aerated concrete blocks to the packaging line or other designated locations. Here is the relevant introduction:
Structural composition
usually includes a transverse guide frame, a longitudinal guide frame, a crane, a lifting mechanism, a synchronization mechanism, and a clamping mechanism. The lifting mechanism consists of a sliding plate, connecting beam, lifting cylinder, etc., which can achieve the lifting and lowering of the fixture. The clamping mechanism consists of a crossbeam, a clamping arm, and an oil cylinder. The two sides of the crossbeam are connected to the clamping arm through a pin shaft, and the oil cylinder drives the clamping arm to open and close to clamp or release the block. The bottom of the clamping arm is generally equipped with anti slip rubber pads to prevent the block from slipping off.
Working principle
By moving a crane on a specific track, the fixture is transported above the aerated concrete block. The lifting mechanism descends to bring the fixture closer to the block, and then the oil cylinder of the clamping mechanism moves to drive the clamping arm to clamp the block. Then the lifting mechanism rises to lift the block, and the crane lifts the block to the designated location. Finally, the clamping arm is released to complete the transportation of the block.
Functional features
It can achieve efficient handling and precise positioning of single-mode blocks. Some fixtures use linkage mechanisms to ensure balanced stress during operation, avoid block damage, reduce internal stress in fixtures, and extend service life. Some also have synchronization function, and the lifting cylinder may adopt a floating connection, which is convenient for disassembly and saves costs.
