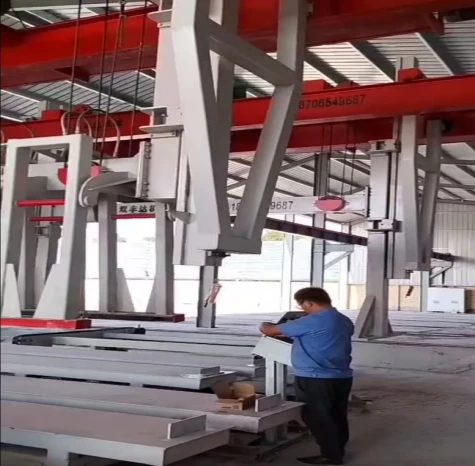

Single-mold Hanger
The single-mode lifting device for transporting aerated concrete blocks out of the kettle is a key equipment used in the production process of aerated concrete to lift the aerated concrete blocks out of the kettle.
The following is a related introduction:
-Function: Mainly used to lift the autoclaved aerated concrete blocks from the trolley after being discharged from the kettle and place them in designated locations, such as packaging areas or transport vehicles, for subsequent packaging and transportation processes.
-Working principle: Usually used in conjunction with lifting equipment such as cranes. Lift single board aerated concrete blocks by driving the lifting device through hydraulic or hoisting systems.
-Structural characteristics: Generally composed of installation hangers, lifting hangers, hoisting components, etc. The installation hanger is used to connect with the crane, and the lifting hanger can slide up and down under power drive.
-Attention: When using, the specified bearing capacity should be strictly followed and overloading is not allowed. Regularly inspect and maintain the steel wire ropes, key load-bearing components, etc. on the lifting equipment, lubricate the active connections, and promptly repair any peeling of the indicator paint.
Main technical parameters
1. Model size: 4000 * 1200 * 600/4200 * 1200 * 600/4800 * 1200 * 600/6000 * 1200 * 600
2. Mass: 6500 kilograms
3. Power: 16Kw
4. Operating speed: 10-60m/min, variable freque
The common faults and troubleshooting methods are as follows
Cracking and toppling of the billet
If the lifting force is too strong or too fast, or if the lifting plate does not lift all the bottom, it will cause deformation of the bottom plate, which in turn will cause cracking of the billet. Excessive force and speed during lifting should be avoided to ensure that the boom can lift enough bottom plates. For mold bottom plates with poor stiffness or severe wear and corrosion, they should be replaced or repaired in a timely manner.
Blank body missing edges and corners
During the transportation process of the lifting device, the bottom plate shakes and deforms to reduce the damage of mold shaking to the edges and corners of the blank body.
Wire rope issue
Wear and insufficient lubrication of the wire rope can affect the normal use of the lifting device. The steel wire rope should be cleaned in a timely manner and coated with lubricating oil or grease, especially at the bends of the steel wire rope. At the same time, the wear of the steel wire rope should be checked regularly. If there is serious wear or wire breakage, it should be replaced in a timely manner.
