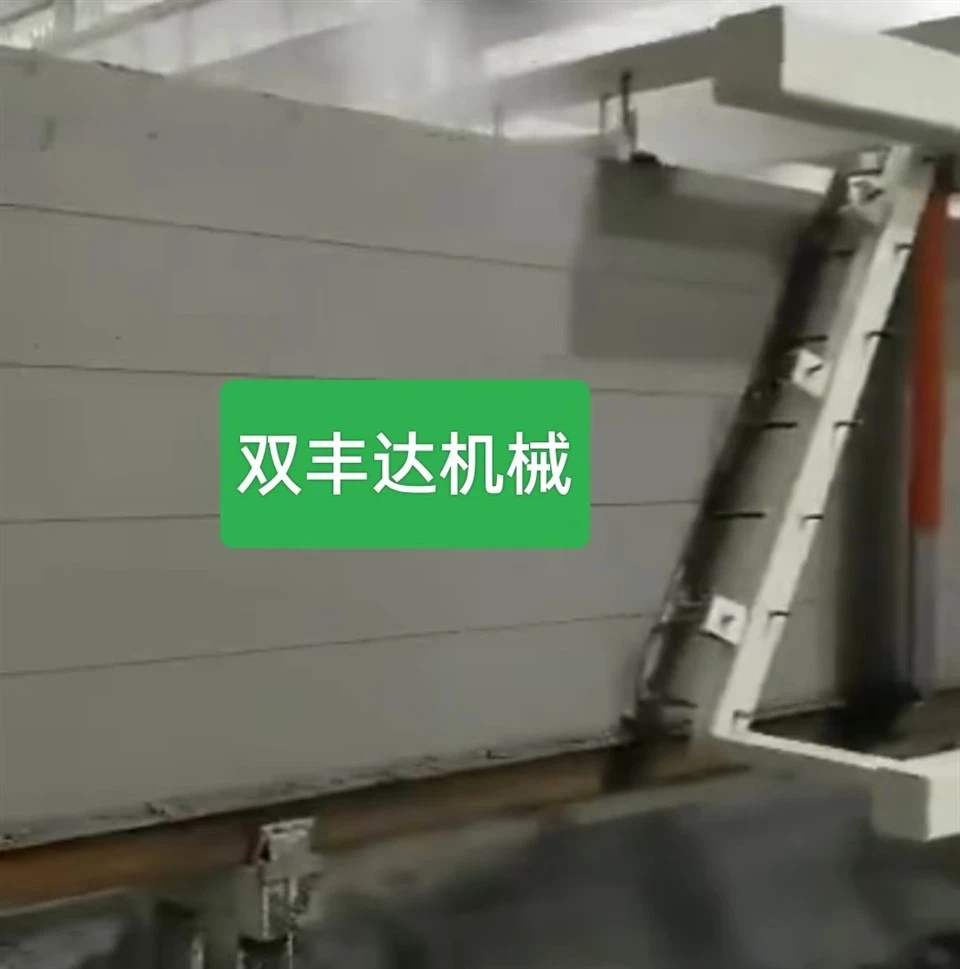

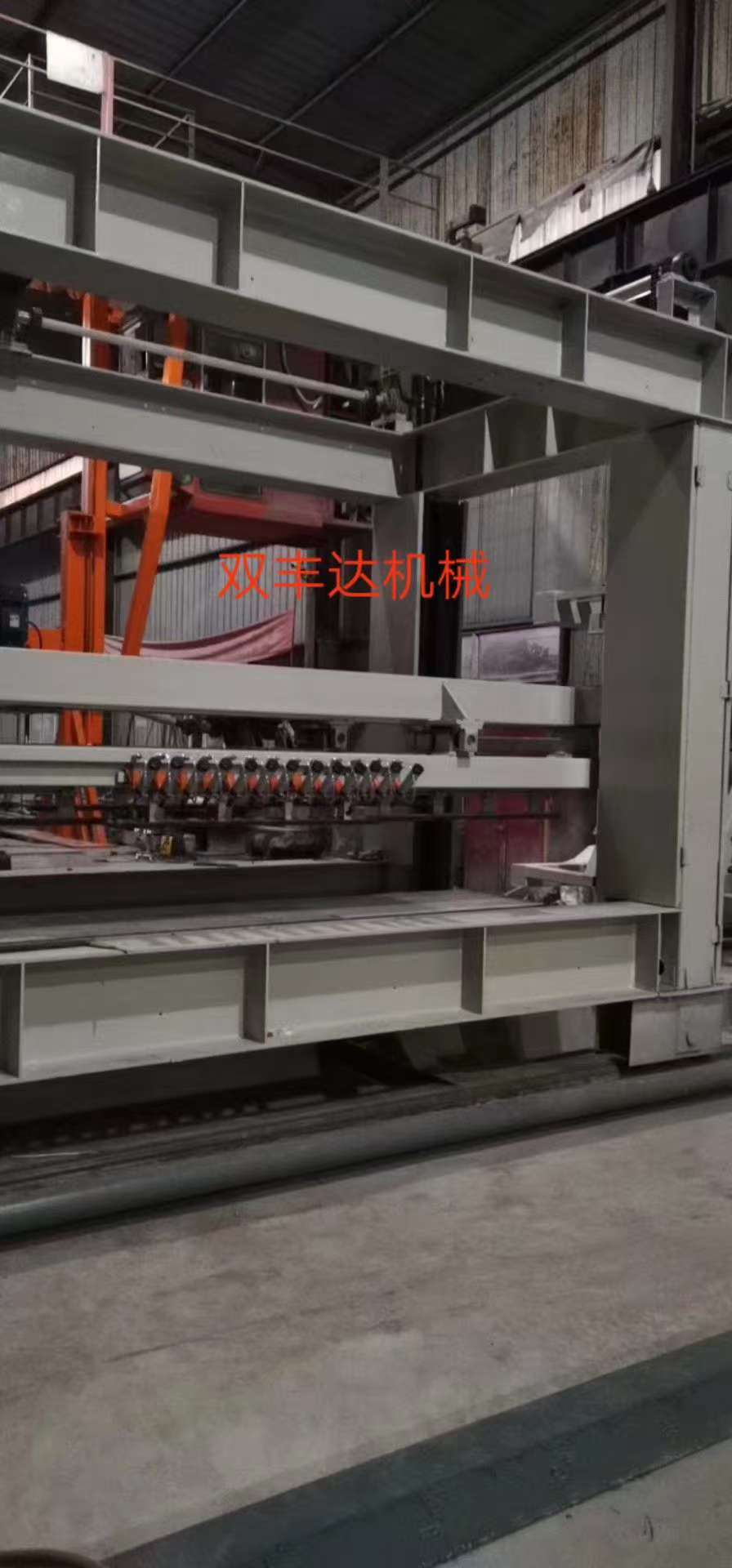

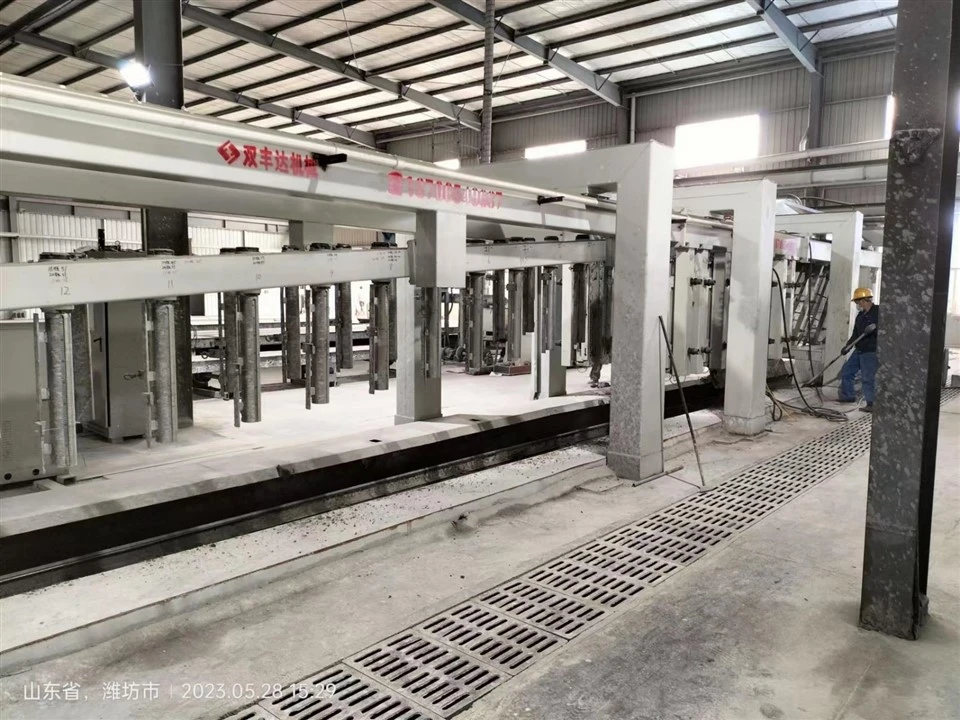

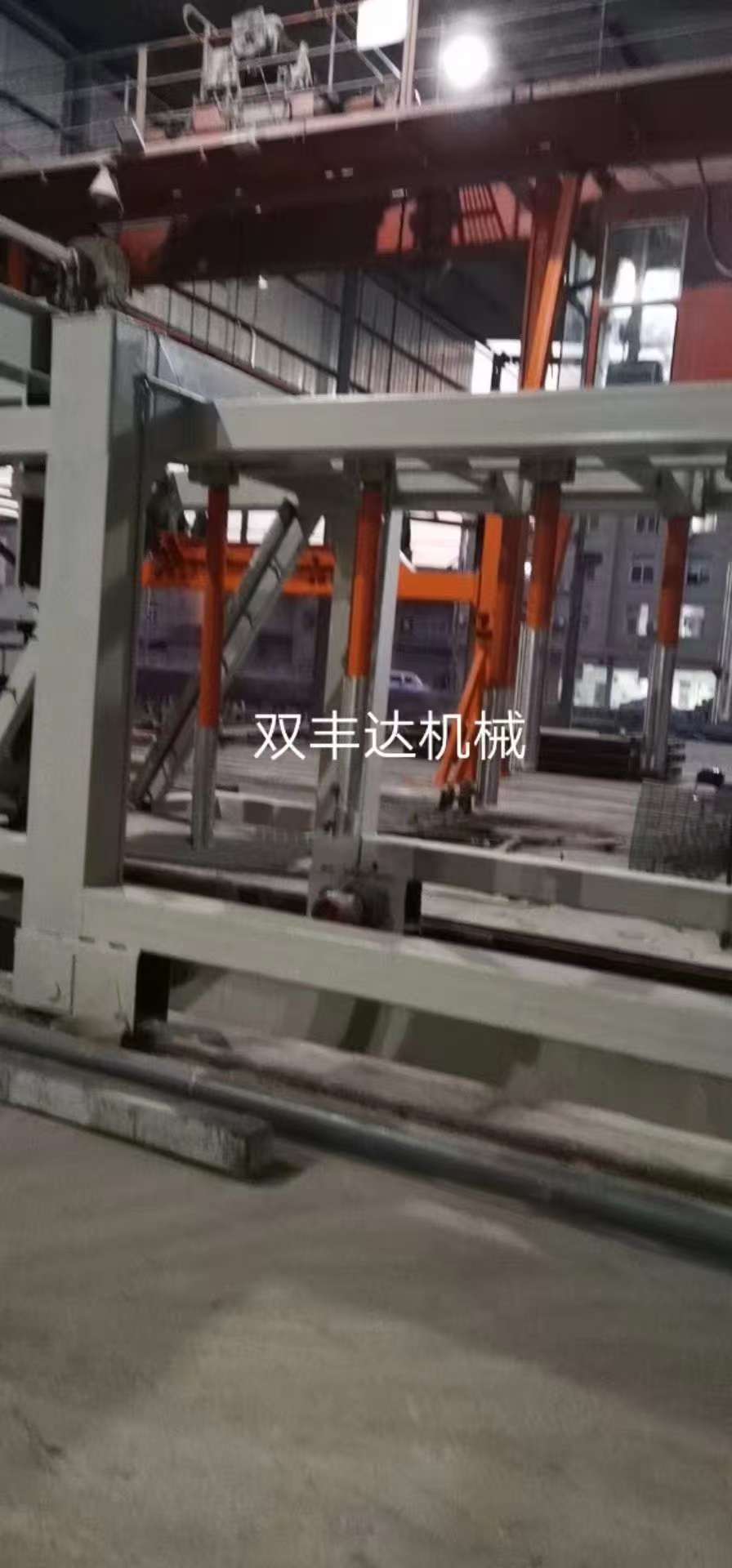

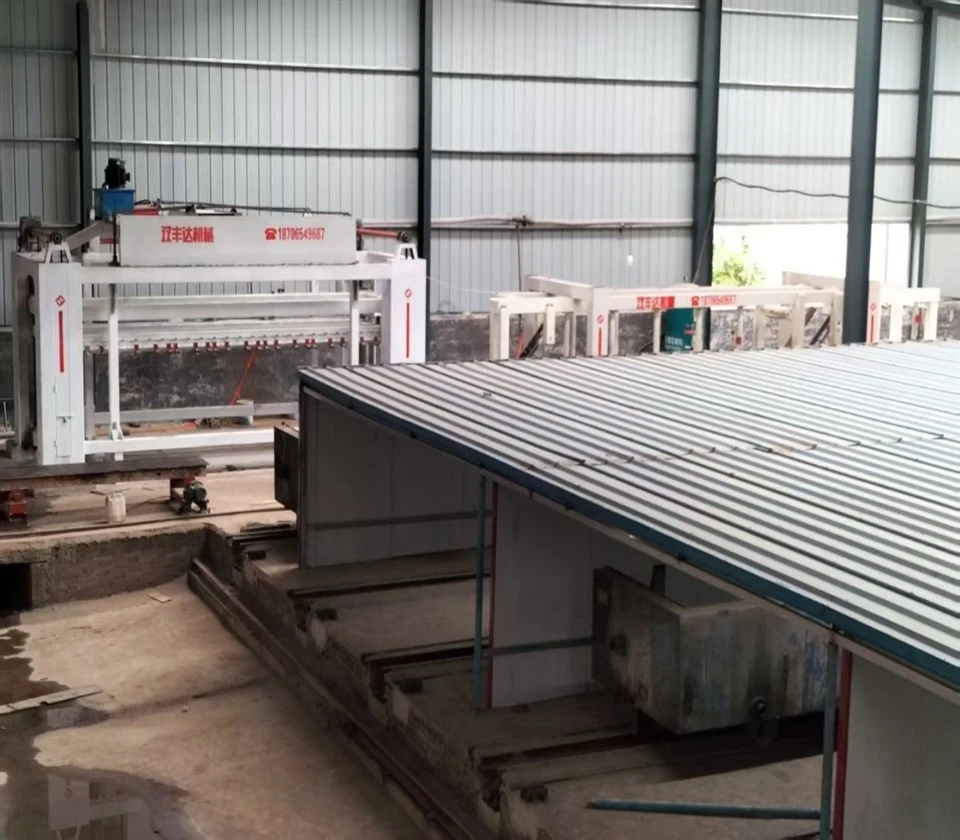

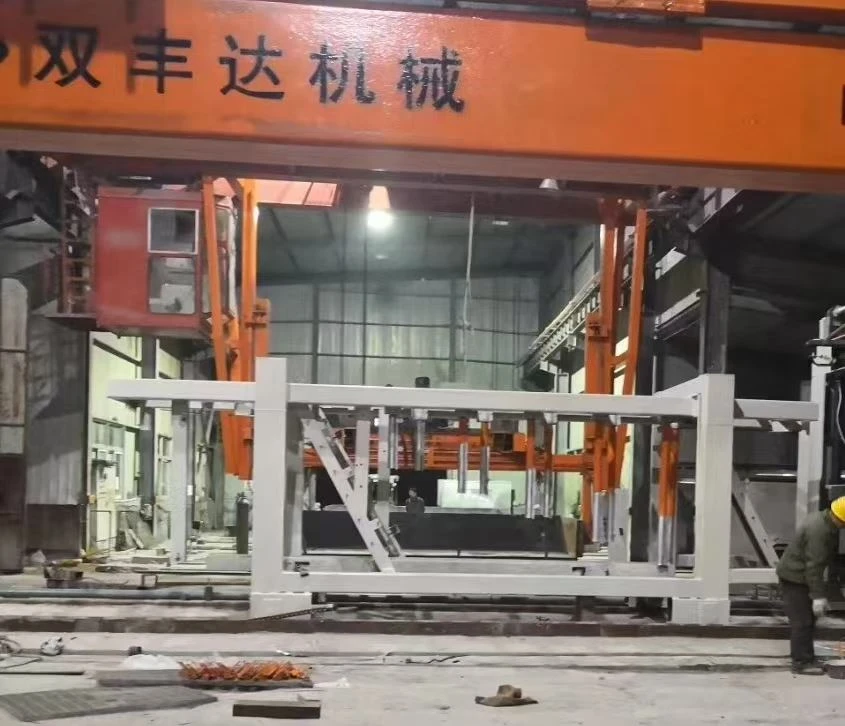

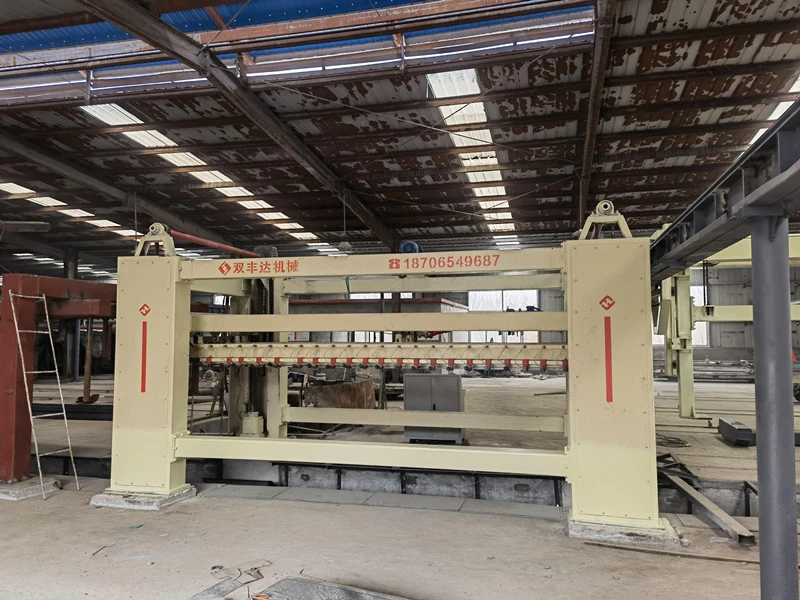

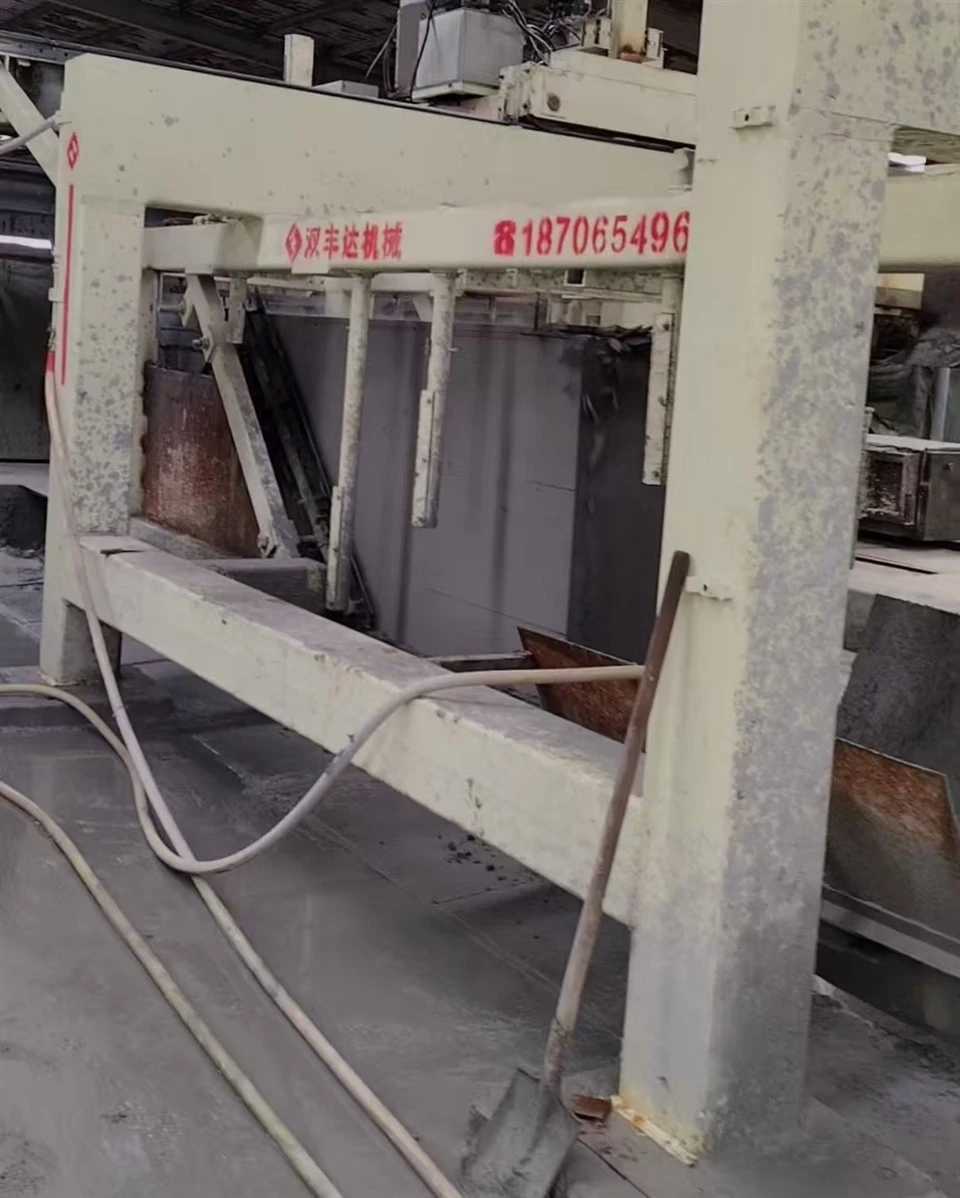

Aerated concrete block cutting machine is a specialized equipment used for precise cutting and processing of aerated concrete blocks, widely used in the construction and building materials industry. It can cut the formed aerated concrete body into products that meet the size requirements.
core functionality
-Precise cutting: The aerated concrete block blank can be cut into specific lengths, widths, and thicknesses according to the construction needs, meeting the size requirements of different wall masonry, insulation structures, and other aspects.
-Forming processing: Targeting the lightweight and porous characteristics of aerated concrete, a specialized cutting tool is used to achieve smooth cutting, reduce material damage, and ensure a smooth cutting surface. It adopts an automated control system, which can achieve integrated operation of billet conveying, positioning, and cutting, with high cutting accuracy (error can usually be controlled within a few millimeters) and high efficiency, suitable for large-scale production scenarios.
Key components
Rack
Supports the overall structure of the equipment to ensure stability during the cutting process.

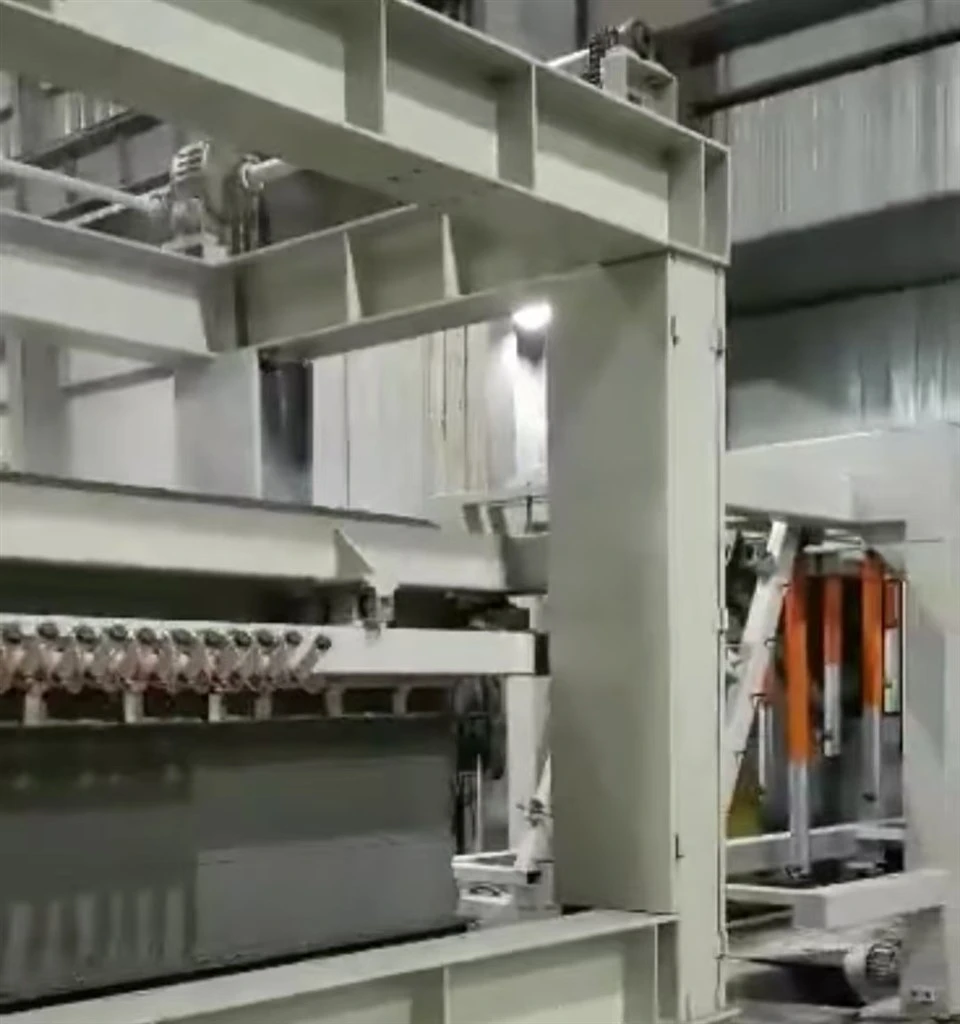

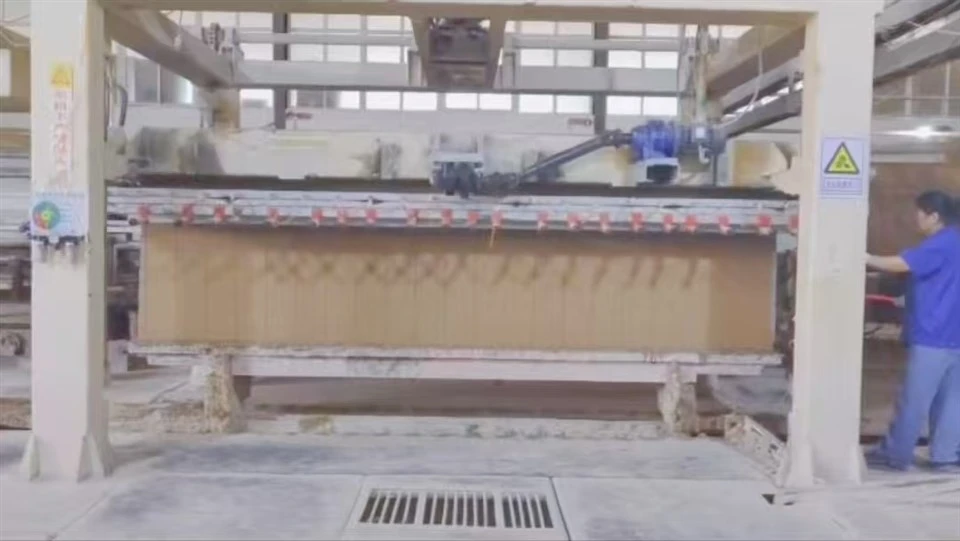

Cutting device
The core component, usually equipped with a scraper and cutting wire, is driven by a motor to achieve cutting action.
Feeding/positioning mechanism
The cutting cart automatically drives the movement of the block blank or adjusts the position of the block to ensure accurate cutting dimensions.
Control system
The fully automatic model is equipped with PLC and other control systems, which can set cutting parameters (size, speed, etc.) to achieve automated operation.
Applicable characteristics
-Suitable materials: Designed specifically for aerated concrete blocks, it can also be used for cutting similar lightweight porous building materials (such as self insulating concrete blocks).
By selecting appropriate models and operating in a standardized manner, the aerated concrete block cutting machine can effectively improve the processing quality and production efficiency of aerated concrete building materials, meeting the precise requirements for block size in construction.
Main technical parameters
1. Model size: 4000 * 1200 * 600/4200 * 1200 * 600/4800 * 1200 * 600/6000 * 1200 * 600
2. Mass: 30000 kilograms
3. Power: 22Kw
4. Operating speed: 10-45m/min, variable frequency adjustable
Aerated concrete block cutting machine is a specialized equipment used for precise cutting and processing of aerated concrete blocks, widely used in the construction and building materials industry. It can cut the formed aerated concrete body into products that meet the size requirements.
The following is its main explanation:
Core functionality
Precise cutting
The aerated concrete block blank can be cut into specific lengths, widths, and thicknesses according to the construction needs, meeting the size requirements of different wall masonry, insulation structures, and other aspects.
Forming processing
Targeting the lightweight and porous characteristics of aerated concrete, a specialized cutting tool is used to achieve smooth cutting, reduce material damage, and ensure a smooth cutting surface. It adopts an automated control system, which can achieve integrated operation of billet conveying, positioning, and cutting, with high cutting accuracy (error can usually be controlled within a few millimeters) and high efficiency, suitable for large-scale production scenarios.
Key components
-Rack: Supports the overall structure of the equipment to ensure stability during the cutting process.
-Cutting device: The core component, usually equipped with a scraper and cutting wire, is driven by a motor to achieve cutting action.
-Feeding/positioning mechanism: The cutting cart automatically drives the movement of the block blank or adjusts the position of the block to ensure accurate cutting dimensions.
-Control system: The fully automatic model is equipped with PLC and other control systems, which can set cutting parameters (size, speed, etc.) to achieve automated operation.
Applicable characteristics
-Suitable materials: Designed specifically for aerated concrete blocks, it can also be used for cutting similar lightweight porous building materials (such as self insulating concrete blocks).
By selecting appropriate models and operating in a standardized manner, the aerated concrete block cutting machine can effectively improve the processing quality and production efficiency of aerated concrete building materials, meeting the precise requirements for block size in construction.
Main technical parameters
1. Model size: 4000 * 1200 * 600/4200 * 1200 * 600/4800 * 1200 * 600/6000 * 1200 * 600
2. Mass: 30000 kilograms
3. Power: 22Kw
4. Operating speed: 10-45m/min, variable frequency adjustable
Common faults and troubleshooting methods
1. Cause of malfunction: Loose or broken cutting wire; Uneven hardness of raw material body; The position of the guide wheel is offset.
2. Exclusion method: Re tension or replace the cutting wire; Check the raw material ratio to ensure consistent hardness of the billet; Adjust the guide wheel to the correct position and tighten the bolts.
1. Cause of malfunction: Severe wear of the cutting steel wire; The cutting speed does not match the hardness of the billet; The roller does not rotate flexibly.
2. Exclusion method: Replace the cutting wire with a new one; Adjust the cutting speed according to the hardness of the billet, and reduce the speed if the hardness is high; Clean up foreign objects on the roller, add lubricating oil, and replace the roller if necessary.
1. Cause of malfunction: Bearing wear or damage; Excessive gear mesh clearance; The connecting bolts of the components are loose.
2. Exclusion method: Disassemble and inspect the bearings, and replace them if they are severely worn; Adjust the gear mesh clearance to the standard range; Check each connecting bolt one by one and tighten it again.
1. Cause of malfunction: Unqualified steel wire quality; Excessive tension; Foreign objects (such as stones and metal blocks) are mixed into the blank.
2. Exclusion method: Replace with high-quality cutting steel wire that meets the standards; Reduce the tension appropriately and maintain it within a reasonable range; Strengthen raw material screening to prevent foreign objects from entering the billet.
1. Cause of malfunction: Insufficient or contaminated hydraulic oil; Wear and tear of hydraulic pump; The seal is aging and damaged.
2. Exclusion method: Supplement or replace clean hydraulic oil; Check the hydraulic pump and repair or replace it if it is severely worn; Replace aging seals to ensure good sealing.
